High Pressure Autoclaves

Unleash the potential of our High Pressure Autoclaves, meticulously designed to deliver impeccable performance for a wide range of sterilization applications. With an experience spanning over 3.0 years, we are your trusted service provider, supplier, and trader of premium-quality autoclaves across All India. Our range, including the High Pressure Vertical Autoclave Radial Locking and High Pressure Horizontal Autoclave, reflects an incomparable blend of advanced technology and robust engineering. These autoclaves boast prime features such as exceptional durability, superior safety mechanisms, faster sterilization cycles, outstanding temperature control precision, and energy efficiency that ensures cost-effectiveness. When you deal with our autoclaves, you not only gain access to high-performance products but also unmatched reliability and exceptional customer support. Designed to outperform other sterilization solutions in the market, our autoclaves are the ultimate choice for those who prioritize safety and efficiency. With the most competitive offers in the industry, we ensure you receive the best-in-class products at the best value. Enhance your operational capabilities with our High Pressure Autoclaves and seize the advantage of superior performance, cutting-edge design, and unmatched affordability.

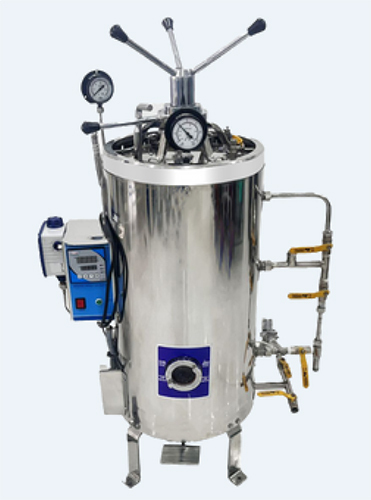

High Pressure Vertical Autoclave Radial Locking

MOQ : 10 Units

  • Chamber Size
  • Dia 500 mm x Depth 900 mm (customizable)
  • Chamber Thickness
  • 8-12 mm SS 304/316 grade
  • Compressed Air
  • 6-8 bar required for locking mechanism
  • Design Pressure
  • 2.5 kg/cm2 (approx.)
  • Design Temperature
  • Up to 139C
  • Door Type
  • Vertical Radial Locking with pressure safety
  • Heat Uniform
  • 2C throughout chamber
  • Inner Trolley
  • Perforated SS inner trolley included
  • Insulation
  • High density ceramic wool with SS cladding
  • Net Weight
  • Approx. 250-300 kg
  • Outer Size
  • 600 mm x 1200 mm (approx.)
  • Outer Trolley
  • Provided with heavy-duty removable trolley
  • Piping System
  • SS 304/316 grade with automatic venting
  • Power Consumption
  • 6-18 KW depending on size
  • Recording Parameters
  • Digital temperature, pressure recording with printer provision
  • Spraying Mode
  • Rotary high-pressure nozzle
  • Spraying Piping
  • High pressure SS piping system for uniform spray
  • Steam
  • Suitable for direct or jacketed steam
  • Sterilization Time
  • User selectable, typically 0-99 min
  • Sterilizing Temperature
  • Up to 134C maximum
  • Temperature Scope
  • Ambient to 134C adjustable
  • Type
  • Other, High Pressure Vertical Autoclave Radial Locking
  • Valves
  • Pressure relief, vacuum break, steam inlet/outlet
  • Working Pressure
  • 1.2 to 2.1 kg/cm2
  • Working Temperature
  • 121C - 134C

High Pressure Horizontal Autoclave

MOQ : 10 Units

  • Chamber Size
  • Custom (Example: 650mm x 1200mm)
  • Chamber Thickness
  • 6-12 mm (SS 316L)
  • Compressed Air
  • 6-7 bar required for operation
  • Design Pressure
  • 2.5 kg/cm2 (35 psi)
  • Design Temperature
  • 135C
  • Door Type
  • Horizontal sliding, manual/automatic
  • Heat Uniform
  • 1C throughout chamber
  • Inner Trolley
  • Perforated stainless steel, adjustable shelves
  • Insulation
  • High density glass wool or ceramic fiber, 75 mm thick
  • Net Weight
  • Appx. 350 - 500 kg (model dependent)
  • Outer Size
  • 1300 x 650 x 600 mm (customizable)
  • Outer Trolley
  • Heavy-duty stainless steel removable type
  • Piping System
  • SS 304/316 seamless piping with tri-clamp fittings
  • Power Consumption
  • 9 - 18 kW (model dependent)
  • Recording Parameters
  • Microprocessor controller with digital printout/USB backup
  • Spraying Mode
  • Rotary/Static
  • Spraying Piping
  • 316 grade stainless steel spray pipes
  • Steam
  • Saturated steam supply, internal/external generator
  • Sterilization Time
  • 15 - 60 minutes (adjustable)
  • Sterilizing Temperature
  • 121C - 134C
  • Temperature Scope
  • Room temp to 135C
  • Type
  • Other, High Pressure Horizontal Cylindrical Autoclave
  • Valves
  • Safety, steam release, pressure relief, drain (SS 304/316)
  • Working Pressure
  • 1.2 - 2.2 kg/cm2 (17-31 psi)
  • Working Temperature
  • Up to 134C
